RSC2 - Machined Chain Guide Wear Strip

RSC2 - Machined Chain Guide Wear Strip


The RSC2 machined wear strip profile is manufactured as a guide rail for DIN 766 link chains. The RSC2 profile is can be supplied with a carrier profile if required.

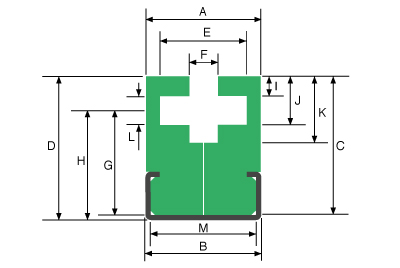

Dimensional Drawing:

RSC2 Dimensional Drawing

Availability:

The RSC2 profile is supplied in two parts and is available in many different sizes. Please reference the dimensional drawing above with the dimensions in the table below.

Part No.

A

B

C

D

E

F

Carrier Profile*

RSC2-6

45

38

42.5

45

21.5

7.0

C-3818

RSC2-8

50

38

47.5

50

28.5

9.5

C-3818

RSC2-10

50

38

57.5

60

35.5

12.0

C-3818

RSC2-13

60

60

72.5

75

45.5

15.0

C-6020

RSC2-16

70

60

82.5

85

56.0

18.5

C-6020

Part No.

G

H

I

J

K

L

M

Carrier Profile*

RSC2-6

34.5

37.0

4.5

11.5

19.5

7.0

33

C-3818

RSC2-8

37.75

40.5

5.0

14.5

23.5

9.5

33

C-3818

RSC2-10

43.5

46.0

8.5

20.5

31.0

12.0

33

C-3818

RSC2-13

54.5

57.0

10.5

25.5

39.0

15.0

55

C-6020

RSC2-16

58.5

61.0

15.0

33.5

51.0

18.5

55

C-6020

*Carrier profiles are not supplied with the wear strips as standard. Please state upon enquiry if required.
