Sliding Track System

Sliding Track System









PAR Group supply a PVC door curtain sliding track system complete with rails, brackets and hangers that are easy to assemble and install.

Our sliding track system can work in two different ways:

Half Opening System Full Opening System
Half Opening System Full Opening System
Half the curtain will slide behind the other. The curtain will slide away from the opening.


Please provide us with the following information to allow us to quote:

  • Sliding type required (half opening system or full opening system) shown above.
  • Width of your opening.
  • Height of your opening.
  • Type and frequency of traffic.
  • Grade of strip required (Select from PVC door curtain).

You will receive:

  • Strips cut to the required length and fitted with stainless steel plates.
  • Hanging rails.
  • The correct number and type of part (shown below) to suit your opening.

Availability:

Tubular Track

Tubular Track









Our tubular track is manufactured from high quality cold rolled steel strip, light coat galvanised to BS 2989. the standard lengths shown below can be cut to suit your requirements.

Track Gauge A (mm) B (mm) Weight per linearm Length (mtrs)
0 16BG 1.6mm 41 36 1.65 2 / 2.5 / 3 / 3.5 / 4.5 / 6
1 14BG 2.0mm 51 41 2.51 2 / 2.5 / 3 / 3.5 / 4.5 / 6
2 14BG 2.0mm 73 54 3.17 2 / 2.5 / 3 / 3.5 / 4.5 / 6
3 12BG 2.5mm 83 70 5.30 2 / 2.5 / 3 / 3.5 / 4.5 / 6
4 10BG 3.0mm 94 75 7.44 2 / 2.5 / 3

708S Hanger

708S Hanger
50 x 50 Aluminium Angle




The 708S hanger is designed for use with the tubular track. With our sliding door kit, a 50x50mm angle is bolted to the hanger for PVC door kit hanging rails to be fixed to. The wheels will run inside the corresponding track from the table above.

Track to Suit A (mm) B (mm) C Max (mm) C Min (mm) K (mm) Bolt Diameter
1 102 60 108 90 51 12
2 127 70 146 119 66 12
3 149 83 159 135 76 12
4 159 83 181 152 76 16

Soffit Fixing Brackets

Soffit fixings are to be used for fixing to the underside of a roof or opening. Single brackets are available for full opening systems, and double brackets are available for half opening systems.

737 Open Single 738S Closed Single
737 Open Single 737 Open Single 738S Closed Single 738S Closed Single



Track to Suit A (mm) B (mm) D (mm) E (mm) F (mm) G (mm) H (mm) K (mm) P (mm)
1 81 51 11 38 51 95 127 5 5
2 102 51 11 38 64 95 127 5 5
748 Open Double 749 Closed Double
748 Open Double 748 Open Double 749 Closed Double 749 Closed Double



Track to Suit A (mm) B
(mm)
D (mm) F (mm) G (mm) H (mm) J (mm) K (mm) M (mm) O (mm) P (mm)
1 75 51 11 110 146 178 53 44 51 46 10
2 98 57 14 141 183 216 67 44 51 57 10

Face Fixing Brackets

Face fixing brackets are to be used for fixing to the wall or face of the opening. Single brackets are available for full opening systems, and double brackets are available for half opening systems.

716 Open Single 717 Closed Single
716 Open Single 716 Open Single 717 Closed Single 717 Closed Single



Track to Suit A (mm) B (mm) C
(mm)
D (mm) E (mm) F (mm) G (mm) H (mm) K (mm) L
(mm)
M (mm) N
(mm)
1 102 51 89 11 29 57 13 89 38 48 38 71
2 127 57 111 14 37 73 16 111 43 48 44 92
3 156 64 130 14 46 92 19 130 49 67 48 95
4 175 76 149 17 49 100 22 149 60 60 57 114

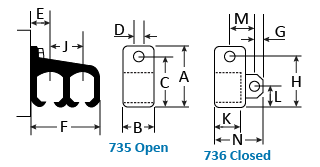

735 Open Double 736 Closed Double
735 Open Double 735 Open Double 736 Closed Double 736 Closed Double



Track
Suit
A (mm)
(mm)
C
(mm)
D (mm) E
(mm)
F (mm) G (mm) H (mm) J (mm) K (mm) L
(mm)
M (mm) N (mm)
1 108 57 89 14 32 111 14 89 52 44 41 41 81
2 133 57 114 14 38 138 19 114 65 44 51 44 89
3 156 70 133 17 48 178 22 133 84 56 70 57 111
4 184 76 159 21 51 191 25 159 90 60 86 60 121
