HR6 modular hose ramps consist of four different types of components (blocks, wedges, joiners and bridges) and can be assembled using the required quantity of each component to create the length for your application. The following illustrates the parts that make up the HR6 modular hose ramps and how they assemble.

Availability:

HR6 Modular Hose Ramp - Rubber Components

HR6-B (Block) HR6-W (Wedge) HR6-J (Joiner)
HR6-B (Block) HR6-W (Wedge) HR6-J (Joiner)
Size (mm): 400(l) x 450(w)
x 160(h)*
Weight
(kg):
34
Max
Load:
44 tonnes
Size (mm): 400(l) x 540(w) x 160(h)**
Weight (kg): 18
Max
Load:
44 tonnes
Size (mm): 400(l) x 350(w) x 180(h)*
Weight (kg): 24
Max Load: 44 tonnes

*Length (l) = the direction in which the channels will run. Width (w) = the direction from one joining side to the other.

**Length (l) = the direction in which the channels will run. Width (w) = the direction from the ramped edge to the joining side.

Note: Measurements do not include connections as these will slot underneath the joining part.

HR6 Modular Hose Ramp - Bridge Components

HR6-C2-YW HR6-C2-RD HR6-C3-GS
HR6-C2-YW HR6-C2-RD HR6-C3-GS
Size (mm): 400(l) x 360(w) x 175(h)*
Weight (kg): 24
Max Load: 44 tonnes
Channels: 170 x 170

Material: Powder coated steel
Size (mm): 400(l) x 370(w) x 190(h)*
Weight (kg): 25
Max Load: 44 tonnes
Channels: 185 x 185

Material: Powder coated steel
Size (mm): 400(l) x 450(w) x 170(h)*
Weight (kg): 28
Max Load: 44 tonnes
Channels: 145 (wide) x 150 (deep)
Material: Galvanised steel

*Length (l) = the direction in which the channels run. Width (w) = the direction from one joining side to the other.

Note: Measurements do not include connections as these will slot underneath the joining parts.

HR6 Modular Hose Ramp Arrangement

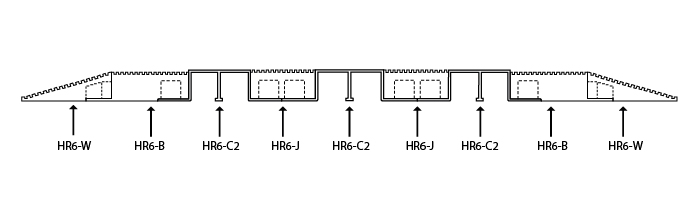

Below is an example of an HR6 modular hose ramp arrangement which makes use of each of the components listed above. Components can be added and removed as required by your application.

HR6 Modular Hose Ramp Arrangement
