Knobs

Ball knobs are moulded in high strength phenolic and have a gloss finish. They are supplied with moulded or steel threads or with a tapered bore which allows the ball to be knocked onto the end of plain rod or shaft. Ball knobs with male studs can also be manufactured to order. Control knobs are primarily used on gas and electrical appliances and are moulded in both thermoset and thermoplastic materials. They are manufactured with a standard D shaft fixing which can be produced to suit various shaft sizes and orientations. Wing knobs are used primarily where maximum torque is required, wing knobs are produced in various sizes, styles and materials.Thumb knobs are available with male, female and through threads and are used for adjustment or fixing. Styles include knobs with or without boss, with solid or recessed heads, screwdriver slots and fine or heavy knurls.

Matt Finish Ball Knob - Female Moulded Thread

Matt Finish Ball Knob - Female Moulded Thread
Matt Finish Ball Knob - Female Moulded Thread - Dimensional Drawing


Material: Black reinforced polyamide.

Part Number D H d d1 Q
4103/15 15 14 9 M4/M5 10
4103/20 20 19 10 M4/M5/M6/M8 14/15/14/13
4103/25 25 23 14 M5/M6/M8/M10 18/18/19/18
4103/30 30 29 14 M5/M6/M8/M10/M12 20/23/22/22/22
4103/35 35 33 16 M6/M8/M10/M12 25/24/25/25
4103/40 40 39 16 M8/M10/M12/M14 30/24/25/25
4103/45 45 44 18 M8/M10/M12/M14 30/30/31/30
4103/50 50 49 18 M10/M12/M14/M16 32/32/33/33


Mushroom Knob - Female Moulded Thread

Mushroom Knob - Female Moulded Thread
Mushroom Knob - Female Moulded Thread - Dimensional Drawing


Material: Black reinforced polyamide.

Part Number D H d d1 Q
4327/22 22 17 11 M4/M5/M6 12
4327/26 26 20.5 13 M5/M6/M8 16
4327/32 32 24 15 M5/M6/M8 18
4327/45 45 32 21 M8/M10/M12/M14/M16 27


Control Knob - 40mm

Control Knob - 40mm
Control Knob - 40mm - Dimensional Drawing


Material: Black heat stabilised nylon 66.

Part Number D H d1 C B
6507K 40 24 6, 8, ¼" 15 12


Wing Knob - Female Thread

Wing Knob - Female Thread
Wing Knob - Female Thread - Dimensional Drawing


Material: Black heat stabilised nylon 66.

Insert Material: Brass (stainless steel on request).

Part Number A B H m d d1 Q
4252/33 33 15 16.5 1 12 M5/M6/M8 7
4252/48 48 15 17 1 12.5 M6/M8 7


Wing Knob - Male Thread

Wing Knob - Male Thread
Wing Knob - Male Thread - Dimensional Drawing


Material: Black reinforced polyamide.

Insert Material: Zinc plated steel.

Part Number A B H d1
4256/45 45 20 17 M6/M8/M10


Solid Knurled Thumb Knob - Female Thread

Solid Knurled Thumb Knob - Female Thread
Solid Knurled Thumb Knob - Female Thread - Dimensional Drawing


Material: Black reinforced polyamide.

Insert Material: Brass

Part Number D H d m c d2 d1 Q
4619/26 26 18 16 8.5 9.5 12 M5/M6/M8 6/9/8


Solid Knurled Thumb Knob - Female Thread

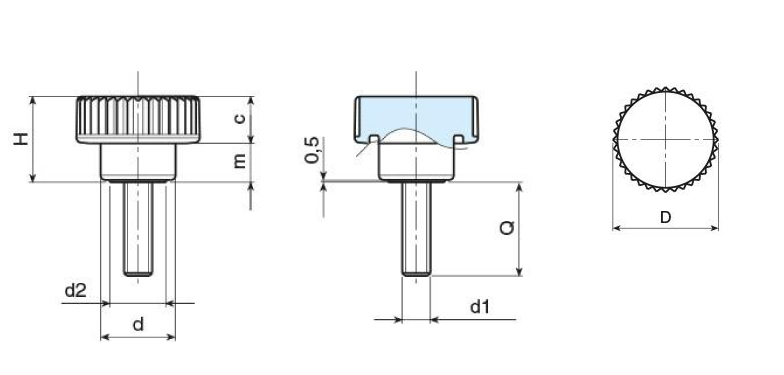

Knurled Thumb Knob - Male Thread


Material: Black reinforced polyamide.

Insert Material: Zinc plated steel (stainless steel on request).

Part Number D H d m c d2 d3 d4 h1 h3 d1
4623/15 15 10.5 10 4.5 6 8 10 7.5 8.5 2 M4/M5
4623/21 21 15 13 6.5 8.5 9.5 15 10.5 12.5 2.5 M5/M6
4623/26 26 18 16 8.5 9.5 12 19 13 15 3 M6/M8
4623/33 32 23 20 10.5 12.5 15 21 16 18 5 M8/M10
4623/40 40 28 25 12.5 15.5 18 28 21 22 6 M8/M10/M12/M14

Note: Q thread by request.


Thumb Knob - Male Thread

Thumb Knob - Male Thread Thumb Knob - Male Thread - Dimensional Drawing


Material: Black nylon.

Insert Material: Zinc plated steel.

Part Number D H d1
6880 20 10 M4/M5/M6/M8

Note: L thread by request.
