Polyurethane Sleeves

Polyurethane Sleeves

Polyurethane sleeves are manufactured using our own in house welding facilities. We have the capability to manufacture polyurethane sleeves, connectors and chutes in many different shapes and sizes. Our products are branded by our own trademark, Versa-chute®.



Versa-chute® is a flexible, abrasion-resistant chute designed to transfer and sort dry foodstuffs, grain, grit, powders, wood shavings, dust and other abrasive materials. Versa-chute® is manufactured from a very durable, clear thermoplastic polyurethane film (TPU) with a fully sealed and welded seam. Versa-chute® can be manufactured in many different shapes and sizes to suit your application, and flanges, foam cuffs, and reinforcing rings can also be incorporated.

Applications

Material transfer, sorting, check-weigh, flow monitoring, bag making, discharging, depositing, conveying, dispensing and packaging.

Key Features

  • Tough, durable and extremely flexible.
  • Very abrasion resistant with excellent tear strength.
  • Reduces the risk of product contamination caused by brittle plastic chutes.
  • Provides good resistance to food stains, oils and grease.
  • Food approved material.
  • Easy to remove from machinery compared to rigid plastic type chutes.

Availability

Size: Made to order, please enquire. We have instructions on how to measure a Versa-chute® to aid the process.
Thickness (mm): 0.375, 1, 1.5 and 3.
Colour: Clear and blue as standard. Other colours upon request.

Note: Versa-chute® polyurethane sleeves are supplied branded as standard. If you require Versa-chute® without branding please state this as a headline in writing when making your enquiry.

Technical Specification:


Versa-chute® is manufactured from the following grades of polyurethane as standard. Please follow the links below to view technical specification and food contact information.

- Grade: TPU90 (1.5mm 90° Translucent TPU Sheet).
- Grade: TPU85 (1.5mm 85° Blue TPU Sheet).
- Grade: TPU95T (3mm 95° Translucent TPU Sheet).
- Grade: TPU95B (3mm 95° Blue TPU Sheet).
- Grade: TPU72 (3mm 72° Translucent Blue TPU Sheet).

See our full range of Thermoplastic Polyurethane (TPU) Sheet available.

Examples of our Polyurethane Sleeves and Versa-chute®

Rectangular Sleeve, Blue Flange
Rectangular Sleeve with Blue Flange

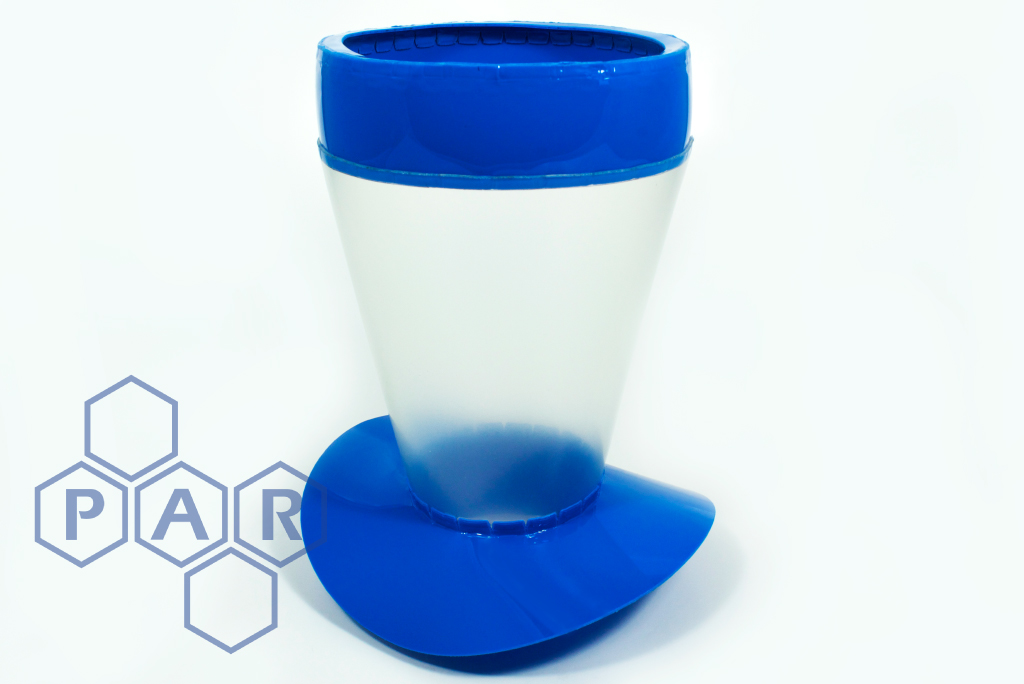

Tapered TPU Sleeve with Blue Flange
Tapered Sleeve with Blue Flange
Tapered Sleeve, Reinf. Rings
Tapered Sleeve with Reinforcing Rings
Tapered Sleeve with Divider
Tapered Sleeve with Divider

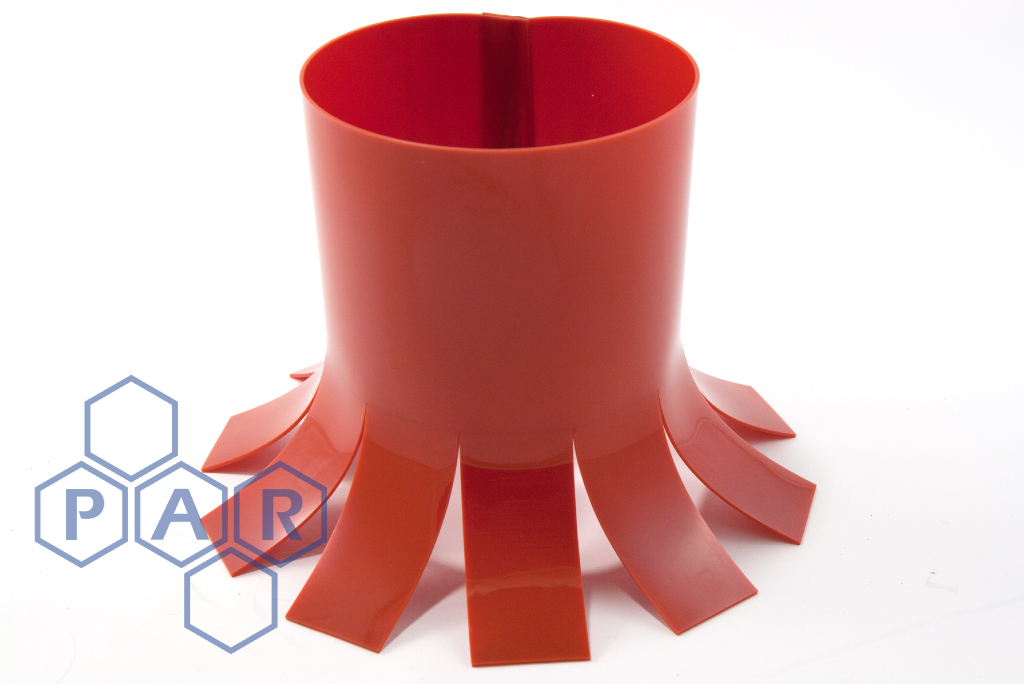

TPU93 Orange Transfer Chute
TPU93 Orange Transfer Chute
Bag Maker Chute
Bag Maker Chute
Metal Detectable Sleeve
TPU85MD Metal Detectable Sleeve
Bellow Sleeve
TPU Humped Bellow
Bellow Sleeve
Bellow Polyurethane Sleeve
Concertina Sleeve
Concertina Polyurethane Sleeve
Square to Round Chute
Square to Round Polyurethane Chute
72° Translucent Blue Chute
72 Shore TPU Versa-Chute
Bellow Sleeve
Bellow Polyurethane Sleeve
Bellow Sleeve, Blue Flange
Bellow Polyurethane Sleeve with Flange
Metal Detectable Transfer Chute
Metal Detectable Transfer Chute
Anti-Static Polyurethane Sleeve
TPUAS Anti-Static Sleeve
Square Sleeve
Square Polyurethane Sleeve
Tapered Sleeve, Blue Flange
Tapered Sleeve with Blue Flange
Sleeve, Sight Window
Polyurethane Sleeve c/w Sight Window
Sleeve, Vacuum Chamber
Sleeve c/w Vacuum Chamber
72° Translucent Blue Tapered Sleeve
72 Shore TPU Versa-Chute
95° Blue TPU Sleeve c/w Double Flange
95° Blue TPU Sleeve c/w Double Flange
Versa-chute® t/s Jacobs Pipework
Versa-chute® t/s Jacobs Pipework
1mtr TPU Popcorn Transfer Chute
1mtr Popcorn Chute
Square to Round c/w Internal Baffles
Square to Round c/w Internal Baffles
Versa-chute® is a registered trademark of PAR Group.
