PTFE Rod - Metal Detectable

Metal Detectable PTFE rod contains very fine material additives that are identifiable to most metal detector equipment. It retains the key characteristics of standard PTFE grades and is mostly used in food, drink and pharmaceutical processing applications. It provides good thermal stability, has a very low coefficient of friction and has excellent resistance to corrosion and chemicals. Metal detectable PTFE rod also has good electrical properties, but is difficult to bond.

Applications

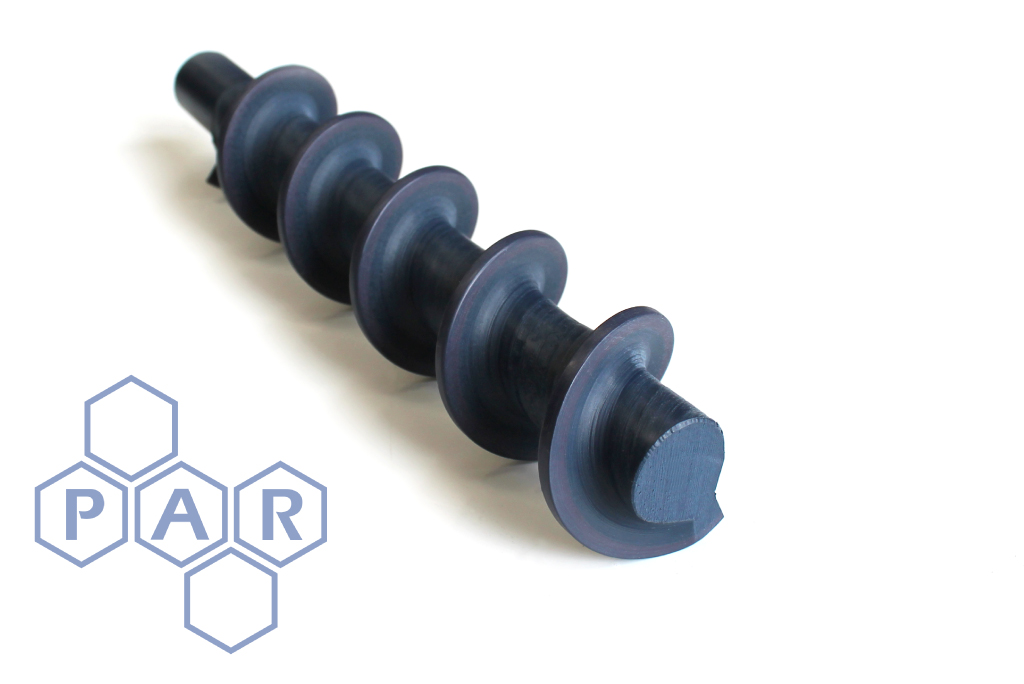

Rollers, scrolls, slide bearings, gaskets, seals and washers.

Key Features

Temperature: -200°C up to +260°C.
Outstanding resistance to low and high temperatures.
Non-stock with excellent sliding properties.
Very low coefficient of friction.
Contains additives that are identifiable in metal detector scanning equipment.
Easily machined.
Food approved.

Standards

Compliant with commission regulation (EU) No. 10/2011 on plastic materials and articles intended to come into contact with food.
FDA approved.

Availability

Also available: PTFE Sheet - Metal Detectable.

Rod Length (mm)	Rod Diameter (mm)
-	30	40	45	50	55	60	65	70	75	80	85	90	95	100	105
300	*	*	*	*	*	*	*	*	*	*	*	*	*	*	*
100	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

Rod Length (mm)	Rod Diameter (mm)
-	110	115	120	125	130	135	140	145	150	155	160	165	170	175	180
300	*	*	*	*	*	*	*	*	*	*	*	*	*	*	*
100	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

Rod Length (mm)	Rod Diameter (mm)
-	185	190	195	200	210	215	220	225	230	240	250	255	260	270	275
300	*	*	*	*	*	*	*	*	*	*	*	*	*	*	*
100	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

Rod Length (mm)	Rod Diameter (mm)
-	280	300	310	320	330	340	350	360	390	450	480	500	530	600	700
300	*	*	*	*	*	-	-	-	-	-	-	-	-	-	-
100	-	-	-	-	-	*	*	*	*	*	*	*	*	*	*

*Denotes manufactured size.

Please note: Long lead times may apply, please enquire.

Rod Length (mm):	300, 100.
Rod Diameter (mm):	30 up to 330 (300mm), 340 up to 700mm (100mm).

Please note: Long lead times may apply, please enquire.

Technical Specification:

Technical Data Sheet

Although our metal detectable products are detectable by the majority of metal detection devices we are unable to offer any guarantees and recommend that you test the material with your equipment.
